DRRF245 Roots Blower

Inquire Now Next Product Download

Product Description

Product introduce

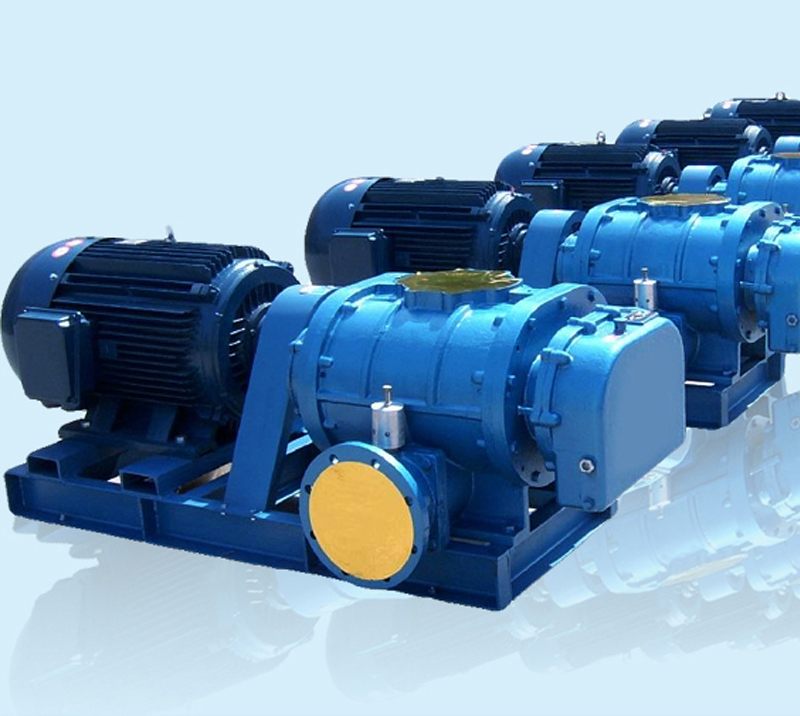

DRRF245 Roots Blowers are twin-lobe type roots blowers, adopt the advanced technology of Japan, its air capacity is 47.5m³/min- 97.4m³/min, the pressure is from 9.8Kpa to 98Kpa. The main characteristic of our air blower is small volume, light weight, flow strong, noise small, steadily reliable operation.

L95WD Roots Blower

Feature

1. Air capacity and pressure can be customized

2. Stable air capacity and less pressure variation

3. Clean air not with oil moist

4. Construction simple and easy maintenance

5. Bearing are all lubricated by oil moist

6. Long service life

Specification

Type of technology	Positive displacement blowers
Design	Positive pressure
Air capacity	47.5 to 97.4m3/min
Discharge Pressure	9.8 to 98Kpa
Medium	Air, Neutral gases
Conveying	Oil-free
Weight	3630-4260kg
Discharge Diameter	250mm(or customized)

Application

Industry	Application
Bulk material handling	Pneumatic conveying
Dairy	Automated milking
Vacuum excavation	Potholing & slurry recovery
Chemical Industry	Vacuum processing & conveying
Pulp & paper	Chip conveying & process vacuum
Power generation	Fly ash conveying & aeration
Milling & baking	Blending & conveying
Blower application	Material vacuuming
Cement & lime	Fluidization & conveying
Waste water	Aeration & backwashing
More...

Parts

Inlet filter silencer

Discharge silencer

Anchor bolts

Baseframe,

Safety valve,

Check valve,

Discharge pressure gauge,

Flexible connections

Lubricant.

Package

Fumigation free plywood case

Iron case

Certificate

CE certificate, ISO9001 certificate and SGS certificate.

DSR350 Roots Blower

Performance parameters

The performance parameters table shows the model, outlet diameter, rotate speed, discharge pressure, air capacity and power of motor.

1. The air capacity and pressure in the tables is in standard suction state. The standard suction state is 20℃ temperature, 1.033 kgf/cm2(101.3Kpa) Standard atmospheric pressure and 65% relative humidity.

2. The air capacity and pressure range of some blower models is repeated, to ensure the service life and low noise, should use the larger model.

DRRF245 Roots blower
Rotate Speed(r/min)	Pressure(kpa)	Air Capacity(m3/min)	ShaftPower(KW)	Motor
Rotate Speed(r/min)	Pressure(kpa)	Air Capacity(m3/min)	ShaftPower(KW)	Model	Power(KW)
650	9.8	61.9	16	Y200L1-6	18.5
	19.6	59.3	28	Y250M-6	37
	29.4	57.3	39	Y280S-6	45
	39.2	55.5	51	Y315S-6	75
	49.0	54.0	63	Y315S-6	75
	58.8	52.5	75	Y315M-6	90
	68.6	51.1	86	Y315L1-6	110
	78.4	49.8	98	Y315L1-6	110
	88.2	48.5	110	Y315L2-6	132
	98.0	47.5	122	Y355M1-6	160
730	9.8	70.5	17	Y225M-8	22
	19.6	67.9	31	Y280S-8	37
	29.4	65.9	44	Y315S-8	55
	39.2	64.1	57	Y315M-8	75
	49.0	62.6	70	Y315L1-8	90
	58.8	61.1	84	Y315L2-8	110
	68.6	59.7	97	Y315L2-8	110
	78.4	58.4	110	Y355M1-8	132
	88.2	57.1	123	Y355M2-8	160
	98.0	56.1	137	Y355M2-8	160
800	9.8	78.0	19	Y200L2-6	22
	19.6	75.4	34	Y280S-6	45
	29.4	73.4	48	Y280M-6	55
	39.2	71.6	63	Y315S-6	75
	49.0	70.1	77	Y315M-6	90
	58.8	68.6	92	Y315L1-6	110
	68.6	67.2	106	Y315L2-6	132
	78.4	65.9	121	Y355M1-6	160
	88.2	64.6	135	Y355M1-6	160
	98.0	63.6	150	Y355M2-6	185
880	9.8	86.6	21	Y225M-6	30
	19.6	84.0	37	Y280S-6	45
	29.4	82.0	53	Y315S-6	75
	39.2	80.2	69	Y315S-6	75
	49.0	78.7	85	Y315L1-6	110
	58.8	77.2	101	Y315L1-6	110
	68.6	75.8	117	Y315L2-6	132
	78.4	74.5	133	Y355M1-6	160
	88.2	73.2	149	Y355M2-6	185
	98.0	72.2	165	Y355M2-6	185
980	9.8	97.4	23	Y225M-6	30
	19.6	94.8	41	Y280M-6	55
	29.4	92.8	59	Y315S-6	75
	39.2	91.0	77	Y315M-6	90
	49.0	89.5	95	Y315L1-6	110
	58.8	88.0	112	Y315L2-6	132
	68.6	86.6	130	Y355M1-6	160
	78.4	85.3	148	Y355M2-6	185
	88.2	84.0	165	Y355M2-6	185
	98.0	83.0	183	Y355M3-6	200

More details， Please click here
