DRRF295 Roots Blower

Inquire Now Next Product Download

Product Description

Product introduce

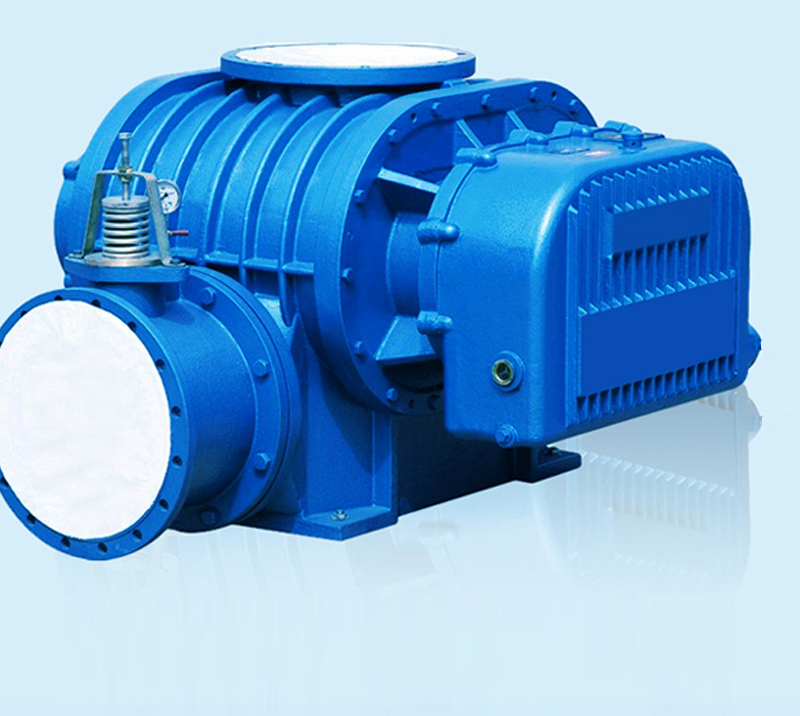

DRRF295 Roots Blowers are twin-lobe type roots blowers, adopt the advanced technology of Japan, its air capacity is 81.0m³/min- 152.5m³/min, the pressure is from 9.8Kpa to 78.4Kpa. The main characteristic of our air blower is small volume, light weight, flow strong, noise small, steadily reliable operation.

L95WD Roots Blower

Feature

1. Air capacity and pressure can be customized

2. Stable air capacity and less pressure variation

3. Clean air not with oil moist

4. Construction simple and easy maintenance

5. Bearing are all lubricated by oil moist

6. Long service life

Specification

Type of technology	Positive displacement blowers
Design	Positive pressure
Air capacity	81.0 to 152.5m3/min
Discharge Pressure	9.8 to 78.4Kpa
Medium	Air, Neutral gases
Conveying	Oil-free
Weight	4760-5750kg
Discharge Diameter	300mm(or customized)

Application

Industry	Application
Bulk material handling	Pneumatic conveying
Dairy	Automated milking
Vacuum excavation	Potholing & slurry recovery
Chemical Industry	Vacuum processing & conveying
Pulp & paper	Chip conveying & process vacuum
Power generation	Fly ash conveying & aeration
Milling & baking	Blending & conveying
Blower application	Material vacuuming
Cement & lime	Fluidization & conveying
Waste water	Aeration & backwashing
More...

Parts

Inlet filter silencer

Discharge silencer

Anchor bolts

Baseframe,

Safety valve,

Check valve,

Discharge pressure gauge,

Flexible connections

Lubricant.

Package

Fumigation free plywood case

Iron case

Certificate

CE certificate, ISO9001 certificate and SGS certificate.

DSR350 Roots Blower

Performance parameters

The performance parameters table shows the model, outlet diameter, rotate speed, discharge pressure, air capacity and power of motor.

1. The air capacity and pressure in the tables is in standard suction state. The standard suction state is 20℃ temperature, 1.033 kgf/cm2(101.3Kpa) Standard atmospheric pressure and 65% relative humidity.

2. The air capacity and pressure range of some blower models is repeated, to ensure the service life and low noise, should use the larger model.

DRRF295 Roots blower
Rotate Speed(r/min)	Pressure(kpa)	Air Capacity(m3/min)	ShaftPower(KW)	Motor
Rotate Speed(r/min)	Pressure(kpa)	Air Capacity(m3/min)	ShaftPower(KW)	Model	Power(KW)
650	9.8	97.3	23	Y225M-6	30
	19.6	93.5	42	Y280M-6	55
	29.4	90.6	60	Y315S-6	75
	39.2	88.0	78	Y315M-6	90
	49.0	85.9	96	Y315L1-6	110
	58.8	84.0	114	Y315L2-6	132
	68.6	82.4	132	Y355M1-6	160
	78.4	81.0	151	Y355M2-6	185
730	9.8	110.8	26	Y250M-8	30
	19.6	107.0	47	Y315S-8	55
	29.4	104.1	67	Y315M-8	75
	39.2	101.5	88	Y315L2-8	110
	49.0	99.4	108	Y355M1-8	132
	58.8	97.5	128	Y355M2-8	160
	68.6	95.8	149	Y355L1-8	185
	78.4	94.4	169	Y355L1-8	185
800	9.8	122.4	29	Y250M-6	37
	19.6	118.6	51	Y315S-6	75
	29.4	115.7	74	Y315M-6	90
	39.2	113.1	96	Y315L1-6	110
	49.0	111.0	118	Y315L2-6	132
	58.8	109.1	141	Y355M1-6	160
	68.6	107.5	163	Y355M2-6	185
	78.4	106.1	185	Y355L1-6	220
880	9.8	135.8	32	Y250M-6	37
	19.6	132.0	56	Y315S-6	75
	29.4	129.1	81	Y315M-6	90
	39.2	126.5	105	Y315L2-6	132
	49.0	124.4	130	Y355M1-6	160
	58.8	122.5	155	Y355M2-6	185
	68.6	120.9	179	Y355M2-6	200
	78.4	119.5	204	Y355M4-6	250
980	9.8	152.5	35	Y280S-6	45
	19.6	148.7	63	Y315S-6	75
	29.4	145.8	90	Y315L1-6	110
	39.2	143.2	117	Y315L2-6	132
	49.0	141.1	145	Y355M1-6	160
	58.8	139.2	172	Y355M2-6	185
	68.6	137.6	200	Y355L1-6	220
	78.4	136.2	227	Y355L2-6	250

More details， Please click here
