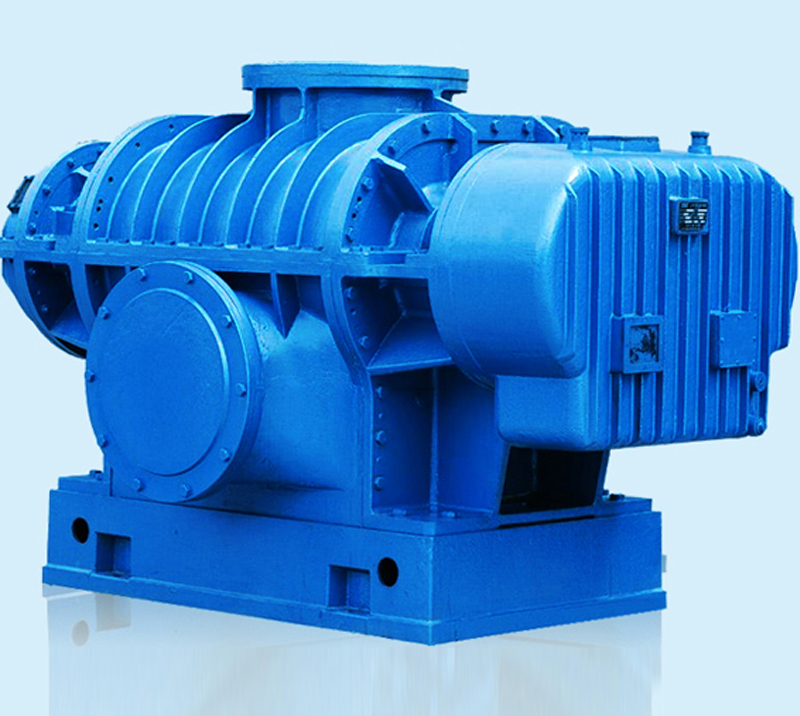

DRRF300 Roots Blower

Inquire Now Next Product Download

Product Description

Product introduce

DRRF300 Roots Blowers are twin-lobe type roots blowers, adopt the advanced technology of Japan, its air capacity is 101.5m³/min- 188.7m³/min, the pressure is from 9.8Kpa to 78.4Kpa. The main characteristic of our air blower is small volume, light weight, flow strong, noise small, steadily reliable operation.

L95WD Roots Blower

Feature

1. Air capacity and pressure can be customized

2. Stable air capacity and less pressure variation

3. Clean air not with oil moist

4. Construction simple and easy maintenance

5. Bearing are all lubricated by oil moist

6. Long service life

Specification

Type of technology	Positive displacement blowers
Design	Positive pressure
Air capacity	101.5 to 188.7m3/min
Discharge Pressure	9.8 to 78.4Kpa
Medium	Air, Neutral gases
Conveying	Oil-free
Weight	5230-6540kg
Discharge Diameter	300mm(or customized)

Application

Industry	Application
Bulk material handling	Pneumatic conveying
Dairy	Automated milking
Vacuum excavation	Potholing & slurry recovery
Chemical Industry	Vacuum processing & conveying
Pulp & paper	Chip conveying & process vacuum
Power generation	Fly ash conveying & aeration
Milling & baking	Blending & conveying
Blower application	Material vacuuming
Cement & lime	Fluidization & conveying
Waste water	Aeration & backwashing
More...

Parts

Inlet filter silencer

Discharge silencer

Anchor bolts

Baseframe,

Safety valve,

Check valve,

Discharge pressure gauge,

Flexible connections

Lubricant.

Package

Fumigation free plywood case

Iron case

Certificate

CE certificate, ISO9001 certificate and SGS certificate.

DSR350 Roots Blower

Performance parameters

The performance parameters table shows the model, outlet diameter, rotate speed, discharge pressure, air capacity and power of motor.

1. The air capacity and pressure in the tables is in standard suction state. The standard suction state is 20℃ temperature, 1.033 kgf/cm2(101.3Kpa) Standard atmospheric pressure and 65% relative humidity.

2. The air capacity and pressure range of some blower models is repeated, to ensure the service life and low noise, should use the larger model.

DRRF300 Roots blower
Rotate Speed(r/min)	Pressure(kpa)	Air Capacity(m3/min)	ShaftPower(KW)	Motor
Rotate Speed(r/min)	Pressure(kpa)	Air Capacity(m3/min)	ShaftPower(KW)	Model	Power(KW)
650	9.8	120.7	29	Y250M-6	37
	19.6	116.6	51	Y315S-6	75
	29.4	113.4	73	Y315M-6	90
	39.2	110.5	96	Y315L1-6	110
	49.0	107.9	118	Y315L2-6	132
	58.8	105.5	140	Y355M1-6	160
	68.6	103.4	162	Y355M2-6	185
	78.4	101.5	185	Y355L1-6	220
730	9.8	137.2	32	Y280S-8	37
	19.6	133.1	57	Y315M-8	75
	29.4	129.9	82	Y315L1-8	90
	39.2	127.0	107	Y355M1-8	132
	49.0	124.4	132	Y355M2-8	160
	58.8	122.0	157	Y355L1-8	185
	68.6	119.9	182	Y355L2-8	200
	78.4	118.0	207	Y450-8	250
800	9.8	151.6	35	Y280S-6	45
	19.6	147.5	63	Y315S-6	75
	29.4	144.3	90	Y315L1-6	110
	39.2	141.4	118	Y315L2-6	132
	49.0	138.8	145	Y355M1-6	160
	58.8	136.4	172	Y355M3-6	200
	68.6	134.3	200	Y355L1-6	220
	78.4	132.4	227	Y355M4-6	250
880	9.8	168.1	39	Y280S-6	45
	19.6	164.0	69	Y315M-6	90
	29.4	160.8	99	Y315L1-6	110
	39.2	157.9	129	Y355M1-6	160
	49.0	155.3	159	Y355M2-6	185
	58.8	152.9	190	Y355M3-6	220
	68.6	150.8	220	Y355M4-6	250
	78.4	148.9	250	Y400-6	280
980	9.8	188.7	43	Y280M-6	55
	19.6	184.6	76	Y315M-6	90
	29.4	181.4	110	Y315L2-6	132
	39.2	178.5	144	Y355M1-6	160
	49.0	175.9	178	Y355M3-6	200
	58.8	173.5	211	Y355L2-6	250
	68.6	171.4	245	Y400-6	280
	78.4	169.5	278	Y400-6	315

More details， Please click here
