DSR300A Roots Blower

Inquire Now Next Product Download

Product Description

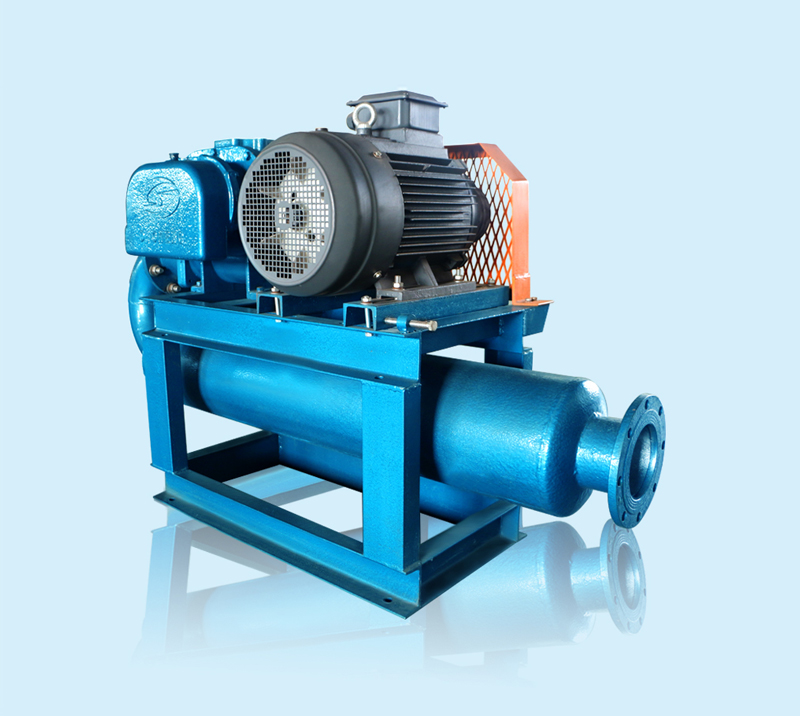

DSR300A Roots Blower Manufacturer for pneumatic conveying

Product introduce

DSR300A Roots China Blowers adopt the advanced technology of Japan, its air capacity is 101.90m³/min-157.40m³/min, the pressure is from 9.8Kpa to 58.8Kpa. The main characteristic of our air blower is small volume, light weight, flow strong, noise small, steadily reliable operation.

DSR350 Roots Blower

Feature

1. Air capacity and pressure can be customized

2. Stable air capacity and less pressure variation

3. Clean air not with oil moist

4. Construction simple and easy maintenance

5. Bearing are all lubricated by oil moist

6. Long service life

Specification

Type of technology	Positive displacement blowers
Design	Positive pressure
Air capacity	101.90 to 157.40 m³/min
Discharge Pressure	9.8 to 58.8Kpa
Medium	Air, Neutral gases
Conveying	Oil-free
Weight	2118kg
Discharge Diameter	300mm(or customized)

Application

Industry	Application
Bulk material handling	Pneumatic conveying
Dairy	Automated milking
Vacuum excavation	Potholing & slurry recovery
Chemical Industry	Vacuum processing & conveying
Pulp & paper	Chip conveying & process vacuum
Power generation	Fly ash conveying & aeration
Milling & baking	Blending & conveying
Blower application	Material vacuuming
Cement & lime	Fluidization & conveying
Waste water	Aeration & backwashing
DSR300A Roots Blower Manufacturer	Pneumatic conveying
More...

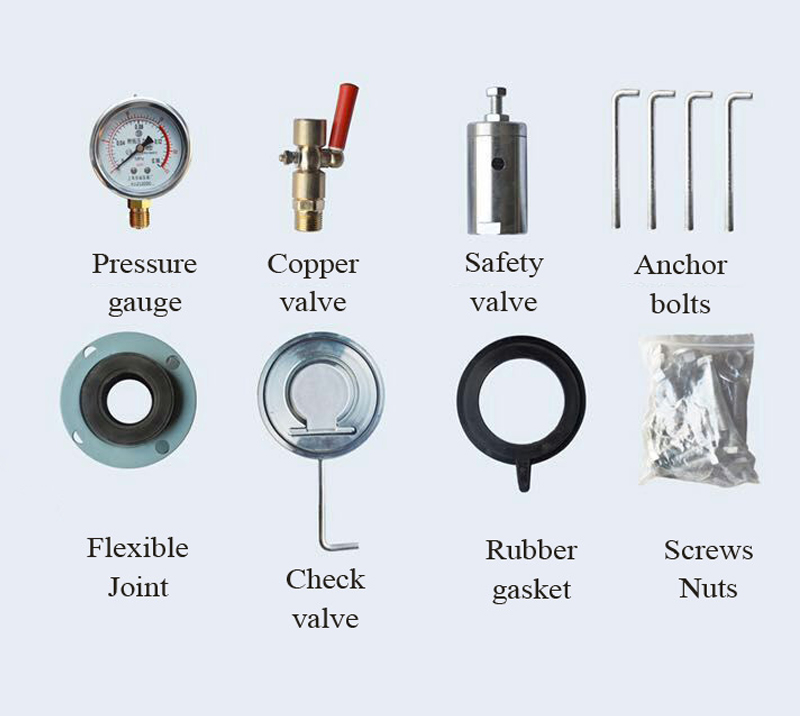

Parts

Inlet filter silencer

Discharge silencer

Anchor bolts

Baseframe,

Safety valve,

Check valve,

Discharge pressure gauge,

Flexible connections

Lubricant.

Package

Fumigation free plywood case

Iron case

Certificate

CE certificate, ISO9001 certificate and SGS certificate.

DSR350 Roots Blower

Performance parameters

The performance parameters table shows the model, outlet diameter, rotate speed, discharge pressure, air capacity and power of motor.

1. The air capacity and pressure in the tables is in standard suction state. The standard suction state is 20℃ temperature, 1.033 kgf/cm2(101.3Kpa) Standard atmospheric pressure and 65% relative humidity.

2. The air capacity and pressure range of some blower models is repeated, to ensure the service life and low noise, should use the larger model.

DSR300A Roots blower
Rotate Speed(r/min)	Pressure(kpa)	Air Capacity(m3/min)	ShaftPower(KW)	Motor
Rotate Speed(r/min)	Pressure(kpa)	Air Capacity(m3/min)	ShaftPower(KW)	Model	Power(KW)
980	9.8	112.4	23.60	Y200L-4	30
	19.6	110.6	46.60	Y250M-4	55
	29.4	108.8	69.61	Y280S-4	75
	39.2	106.0	92.81	Y315S-4	110
	49	103.9	116.0	Y315M-4	132
	58.8	101.9	139.2	Y315L1-4	160
1070	9.8	125	25.30	Y200L-4	30
	19.6	122.5	49.20	Y250M-4	55
	29.4	120.5	75.98	Y280S-4	75
	39.2	117.7	101.3	Y315S-4	110
	49	115.6	126.6	Y315M-4	132
	58.8	113.6	152.0	Y315L1-4	160
1150	9.8	136.1	27.10	Y225S-4	37
	19.6	132.3	54.30	Y280S-4	75
	29.4	130.9	81.64	Y280M-4	90
	39.2	128.1	108.9	Y315M-4	132
	49	126.0	136.1	Y315L1-4	160
	58.8	124.0	163.3	Y315L2-4	200
1230	9.8	147.2	29.30	Y225S-4	37
	19.6	144.2	58.30	Y280S-4	75
	29.4	141.4	87.36	Y280M-4	90
	39.2	138.6	116.5	Y315M-4	132
	49	136.5	145.6	Y315L1-4	160
	58.8	134.5	174.7	Y315L2-4	200
1310	9.8	157.4	32.10	Y225M-4	45
	19.6	154.6	62.10	Y280S-4	75
	29.4	151.8	93.03	Y315S-4	110
	39.2	149.0	124.0	Y315M-4	132
	49	146.9	155.0	Y315L1-4	160
	58.8	144.9	186.1	Y355N1-4	220

More details， Please click here
