Product Description
Products Introduce

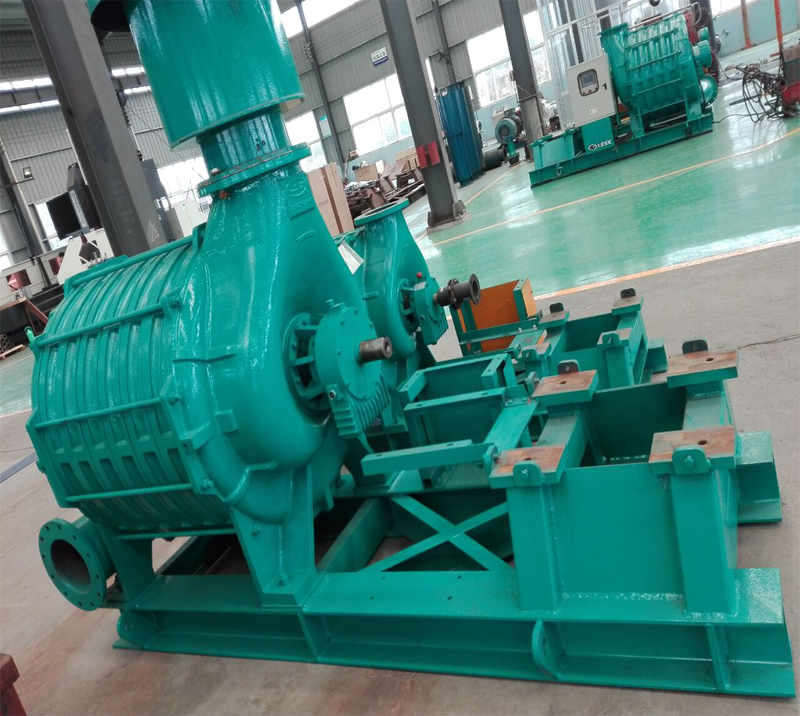

DACHENG MACHINERY offers a full range of multistage centrifugal blowers with 20 models to choose from. We have the right blower for your application today and our Research and Development department is developing new models to meet your needs tomorrow.
Product performance ranges up to 98Kpa pressure or to -40Kpa vacuum and flows from 35 to 220 m³/min. Dacheng manufactures blower and process control systems as well as provides complete blower packages with accessories to meet a wide variety of applications.
Advantage
1. Energy-efficient.
2. Clean Oil Free High Pressure Air
3. No Pulsation of Flow
4. Non-bolt installation.
5. Reliable and Simple to Maintain
6. Customized high-speed efficient broadband motor.
7. Monitoring device.
8. Air cooling.
9. Very Low Sound Levels
10. Long service life.
Model and Technical Details
| Using environment | Transport media | Air, Neutral gases |
| Inlet temperature（℃） | 0 ~ 40℃ | |
| Inlet Pressure（kPa A） | 101.32Kpa.A | |
| Blower | Model | C55 |
| Air capacity（m3/min） | 0 ~ 55 | |
| Round speed（r/min） | 0 ~ 3550 | |
| Transmission form | Directly connected by Couplings | |
| Pressure（kPa） | 78.4Kpa pressure -31.4Kpa vacuum | |
| Lubrication method | Oil splash lubrication | |
| Cooling method | Air cooled | |
| Sealed form | Labyrinth seal + carbon ring seal + suction seal | |
| Axial balance device | With axial balance plate | |
| Safety device | Bearing temperature and vibration sensor | |
| Noise at 1 meter from the blower | ≤80dB | |
| Motor | Model | Energy efficient broadband motor |
| Power（kW） | 30 ~ 110 | |
| power supply | 380V, 30~70hz 3 phases or Customize | |
| Degree of protection | IP55 | |
| Round speed（r/min） | 3550 | |
| Efficiency | IE3 | |
| Explosion protection rating | Customize | |
| Insulation class | F | |
| Material | Blower case | HT250 |
| Impeller | ZL105 Aluminum alloy | |
| Wallboard | HT250 | |
| Oil tank | ZL104A Aluminum alloy | |
| Bearing | SKF Bearing | |
| Coupling | JM200+ Flexible diaphragm couplings | |
| Spindle | 45# Conditioning | |
| Installation | Fixed way | Placed directly without need for anchor bolts |
Application
1) Pneumatic Conveying Applications
2) Water Treatment Blowers & Waste Water Process Control System
3) Petroleum & Chemical Industry
4) Central Vacuum Systems
5) General Industrial
6) Environmental
Package
Certificate
Performance parameters
